1. Introduction & Overview

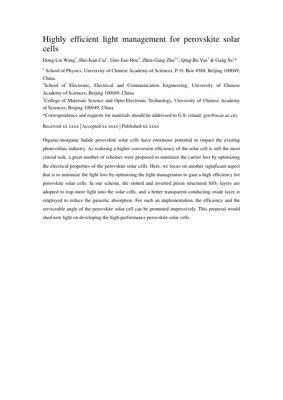

This document analyzes the research paper titled "Highly efficient light management for perovskite solar cells." The paper addresses a critical bottleneck in perovskite photovoltaics (PV): the trade-off between electrical carrier collection efficiency and optical absorption. While most research focuses on minimizing carrier loss through material and interface engineering, this work pivots to minimizing light loss as a parallel path to higher efficiencies. The core proposal involves using structured SiO2 layers (slotted and inverted prisms) for light trapping and optimizing the transparent conducting oxide (TCO) layer to reduce parasitic absorption. The claimed outcome is a significant boost in both cell efficiency and its operational angular tolerance.

2. Core Concepts & Methodology

2.1 The Challenge: Electrical vs. Optical Optimization

Perovskite solar cells have seen a meteoric rise in efficiency from ~4% to over 20% in a decade. The primary focus has been on electrical properties: improving charge carrier mobility, lifetime, and reducing recombination via better materials (e.g., CH3NH3PbI3), interface layers (HTL/ETL like PEDOT:PSS and PC60BM), and fabrication processes. A thinner active layer benefits these electrical parameters but inherently reduces light absorption. This creates a fundamental tension. The paper's thesis is that advanced light management can resolve this by trapping more light within a thin absorber, thus optimizing both optical and electrical performance simultaneously.

2.2 Proposed Light Management Scheme

The proposed solution is two-fold:

  1. Structured SiO2 Trapping Layers: Introducing a layer with slotted or inverted prism patterns atop or within the cell structure. These structures act as light guides and scatterers, increasing the effective optical path length within the perovskite layer through total internal reflection and diffraction, thereby enhancing absorption.
  2. Optimized TCO Layer: Replacing or modifying the standard Indium Tin Oxide (ITO) layer to reduce its parasitic absorption (cited as 14% loss in the baseline model). This could involve using alternative materials (e.g., fluorine-doped tin oxide - FTO with different morphology) or thinner, higher-quality ITO.
The goal is to redirect light that would otherwise be reflected or absorbed in non-active layers into the perovskite absorber.

3. Technical Details & Analysis

3.1 Device Architecture & Optical Simulation

The baseline cell structure used for simulation is: Glass / 80nm ITO / 15nm PEDOT:PSS (HTL) / 5nm PCDTBT / 350nm CH3NH3PbI3 / 10nm PC60BM (ETL) / 100nm Ag. Optical simulations (presumably using transfer-matrix method or FDTD) were performed using experimentally measured optical constants (n, k) for each layer. The simulation breaks down the fate of incident light:

  • 65% absorbed by the perovskite (useful absorption).
  • 14% parasitically absorbed by the ITO layer.
  • 15% reflected from the glass surface.
  • 4% reflected from glass surface.
  • 2% lost in HTL, ETL, and Ag layers.
This analysis clearly identifies ITO absorption and front-surface reflection as major loss channels to be addressed.

3.2 Mathematical Framework for Light Trapping

The enhancement from light trapping structures can be conceptualized through the classical limit for path length enhancement in a weakly absorbing medium, often related to the Lambertian limit. The maximum possible path length enhancement factor for a randomizing texture is approximately $4n^2$, where $n$ is the refractive index of the active layer. For perovskite ($n \approx 2.5$ in the visible range), this limit is ~25. The structured SiO2 layers aim to approach this limit for specific angular ranges. The absorption $A(\lambda)$ in the active layer with a trapping structure can be modeled as: $$A(\lambda) = 1 - e^{-\alpha(\lambda) L_{eff}}$$ where $\alpha(\lambda)$ is the absorption coefficient of perovskite and $L_{eff}$ is the effective optical path length, significantly increased by the trapping structure ($L_{eff} > d$, the physical thickness).

4. Results & Discussion

4.1 Simulated Performance Enhancement

While the provided PDF excerpt cuts off before presenting final numbers, the logical conclusion from the described scheme is a substantial increase in the short-circuit current density (Jsc). By recovering a significant portion of the 33% combined loss from ITO absorption (14%) and reflection (15%+4%), Jsc could potentially increase by 30-50% relative to the baseline 65% absorption. Furthermore, the angular dependence of photocurrent is improved because the prismatic structures help trap light at oblique angles, increasing the cell's serviceable angle and daily energy yield under non-ideal sun positions.

Simulated Light Budget (Baseline)

  • Useful Absorption (Perovskite): 65%
  • Parasitic Loss (ITO): 14%
  • Reflection Loss (Glass/Interfaces): ~19%
  • Other Layer Absorption: 2%

Target of proposed scheme: Minimize Parasitic and Reflection losses.

4.2 Key Insights from the Analysis

  • Holistic Optimization is Key: Pushing perovskite cells beyond 25% efficiency requires co-optimizing optical and electrical design, not just pursuing one avenue.
  • Interface Engineering is Optical Too: The choice and design of TCO and buffer layers have a first-order impact on optical performance due to parasitic absorption and reflection.
  • Geometric Light Trapping is Relevant Again: While nanophotonics (plasmonics, photonic crystals) are often explored, the paper revives simpler, potentially more manufacturable micron-scale geometric textures (prisms) for effective trapping.

5. Analytical Framework & Case Study

Framework for Evaluating PV Light Management Proposals:

  1. Loss Identification: Quantify optical losses by layer (parasitic absorption, reflection) using simulation or measurement. This paper uses transfer-matrix simulation.
  2. Solution Mapping: Map specific loss mechanisms to physical solutions (e.g., ITO absorption -> better TCO; front reflection -> anti-reflection coating/texture).
  3. Performance Metric Definition: Define key metrics beyond just peak efficiency: weighted average efficiency under AM1.5G spectrum, angular response, and potential current density gain $\Delta J_{sc}$.
  4. Manufacturability Assessment: Evaluate the compatibility of the proposed structure (e.g., prismatic SiO2) with scalable deposition and patterning techniques (nanoimprint, etching).
Case Study Application: Applying this framework to the presented paper, the proposal scores high on loss identification and solution mapping. The critical assessment point lies in Step 4: integrating a patterned SiO2 layer without damaging underlying organic layers (PEDOT:PSS) during fabrication remains a practical challenge not addressed in the excerpt.

6. Future Applications & Directions

  • Tandem Solar Cells: This light management approach is particularly promising for perovskite-silicon or all-perovskite tandem cells, where current matching is critical and minimizing reflection/parasitic loss in the wide-bandgap top cell directly boosts the overall efficiency.
  • Flexible & Semi-Transparent PV: For building-integrated photovoltaics (BIPV) or wearable electronics, ultra-thin active layers are desirable. Advanced light trapping becomes essential to maintain high absorption in these thin films.
  • Integration with Photonic Design: Future work could combine these micron-scale textures with nanophotonic elements (e.g., dielectric metasurfaces) for spectrally and angularly selective light trapping.
  • Machine Learning for Optimization: Using inverse design algorithms (similar to approaches in photonics, as seen in works from Stanford or MIT groups) to discover optimal, non-intuitive texture patterns that maximize absorption across the solar spectrum for a given perovskite thickness.

7. References

  1. Green, M. A., Ho-Baillie, A., & Snaith, H. J. (2014). The emergence of perovskite solar cells. Nature Photonics, 8(7), 506–514.
  2. National Renewable Energy Laboratory (NREL). Best Research-Cell Efficiency Chart. https://www.nrel.gov/pv/cell-efficiency.html
  3. Yablonovitch, E. (1982). Statistical ray optics. Journal of the Optical Society of America, 72(7), 899–907. (Seminal work on the $4n^2$ light trapping limit).
  4. Lin, Q., et al. (2016). [Reference for optical constants used in the paper]. Applied Physics Letters.
  5. Zhu, L., et al. (2020). Nanophotonic light trapping in perovskite solar cells. Advanced Optical Materials, 8(10), 1902010.

8. Expert Analysis & Commentary

Core Insight

The paper's fundamental insight is both timely and crucial: the perovskite PV community's obsession with defect passivation and interface engineering has created a lopsided R&D landscape. We've been fine-tuning the "engine" (carrier dynamics) while neglecting the "fuel intake system" (light in-coupling). This work correctly identifies that for thin-film perovskites, especially as we push for thinner layers for better stability and lower material cost, optical losses become the dominant efficiency cap, not just bulk recombination. Their proposed shift from a purely electrical to a photonic-electronic co-design paradigm is where the next 5% in efficiency gains will be mined.

Logical Flow

The argument is logically sound: 1) Establish the perovskite efficiency trajectory and the standard electrical optimization path. 2) Identify the inherent thin-film absorption trade-off. 3) Quantify the specific optical losses in a standard stack (brilliantly highlighting the 14% ITO parasitic loss—a often overlooked killer). 4) Propose targeted, physical solutions for the largest loss buckets. The flow from problem identification to solution proposal is clear and compelling. It mirrors the successful strategy used in silicon photovoltaics decades ago, where surface texturing became standard.

Strengths & Flaws

Strengths: The focus on quantifiable loss mechanisms is its greatest strength. Too many papers propose "light trapping" as a magic bullet. Here, they specify where light is lost. The use of simple, potentially scalable geometric structures (prisms) instead of complex nanoplasmonics is pragmatic and could have better cost-to-benefit ratios for commercialization, akin to the industry adoption of pyramid texturing in Si.

Critical Flaws & Omissions: The excerpt's major flaw is the glaring absence of any experimental data or even final simulated efficiency numbers. It remains a conceptual proposal. Furthermore, it sidesteps critical practicalities:

  • Process Complexity & Cost: Patterning SiO2 with sub-wavelength slots or prisms adds fabrication steps. How does this impact the famed low-cost promise of perovskites?
  • Stability Implications: Introducing new interfaces and potentially trapping moisture in the textured layers could be a disaster for perovskite stability, the field's Achilles' heel. This is not addressed.
  • Angle-of-Incidence Trade-off: While improving the serviceable angle, such textures can sometimes cause performance dips at other angles. A full angular simulation is needed.
Compared to more integrated approaches like embedding scattering nanoparticles directly within the transport layers (as explored by groups at UCLA or EPFL), this external texture approach feels less elegant and more vulnerable to real-world soiling.

Actionable Insights

For researchers and companies:

  1. Immediate Action: Conduct a full optical loss analysis on your champion cell stack. Use transfer-matrix or FDTD simulations (open-source tools like SETFOS or Meep are available) to break down losses exactly as this paper did. You might be shocked by your TCO's parasitic absorption.
  2. Material Strategy: Prioritize the search for low-parasitic-absorption, high-conductivity alternatives to ITO for perovskites. Materials like AZO (Al-doped ZnO) or ITO/Ag/ITO stacks deserve re-evaluation in this specific context.
  3. Design Integration: Don't treat optical design as an afterthought. Use inverse design algorithms from the photonics community (similar to the approach in the seminal CycleGAN paper for image translation, but applied to Maxwell's equations) to co-optimize the texture geometry and layer thicknesses for maximum photocurrent from day one of device design.
  4. Benchmark Realistically: Any future light-trapping proposal must be evaluated not just on peak efficiency, but on its energy yield over a day/year and its impact on device stability under damp heat or UV exposure. The NREL PV reliability database provides crucial benchmarks here.
This paper is a vital wake-up call. The path to 30%+ perovskite efficiencies isn't just through a new passivation molecule; it's through becoming expert photon shepherds. The next breakthrough might come from a photonics engineer, not a materials chemist.
