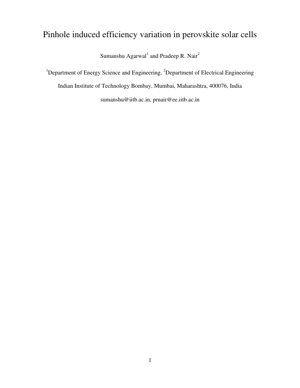

Analysis of Pinhole-Induced Efficiency Variation in Perovskite Solar Cells

1. Introduction

Perovskite solar cells (PSCs) have emerged as a leading photovoltaic technology due to their rapid efficiency improvements, now exceeding 20%. However, a critical barrier to commercialization is the significant performance variation observed between devices fabricated in different labs. A primary suspect is poor morphological control during perovskite film deposition, leading to non-ideal surface coverage and the formation of pinholes. These defects create direct contact points between the electron transport layer (ETL) and hole transport layer (HTL), which can act as recombination centers and reduce photon absorption. This manuscript employs detailed numerical simulations and analytical models to quantify the impact of pinhole size distribution and net surface coverage on key performance parameters: short-circuit current density ($J_{SC}$) and open-circuit voltage ($V_{OC}$).

2. Model System

The study models a standard n-i-p perovskite solar cell structure. The core innovation is the explicit incorporation of "voids" or pinholes within the perovskite layer, representing areas of poor surface coverage (denoted by coverage factor $s$). The unit cell for simulation includes a segment of perovskite and an adjacent void region of width related to the pinhole size. The model accounts for two primary loss mechanisms: (1) reduced optical absorption due to missing perovskite material, and (2) enhanced carrier recombination at the exposed ETL/HTL interface within the void.

3. Core Insight, Logical Flow

Core Insight: The community's focus on eliminating all pinholes might be overblown. This work delivers a crucial, counter-intuitive finding: the open-circuit voltage ($V_{OC}$) of a perovskite solar cell exhibits a remarkable robustness against the morphology of pinholes (their size distribution), caring instead for the net quantity of missing material (surface coverage, $s$). This decouples the optimization pathways for $J_{SC}$ and $V_{OC}$.

Logical Flow: The analysis builds from first principles. It starts by defining a unit cell with a perovskite region and a void, modeling optical generation and carrier transport. The key step is segregating the losses: optical loss in the void directly hits $J_{SC}$, while the recombination loss at the ETL/HTL interface impacts both $J_{SC}$ and $V_{OC}$. The simulation sweeps parameters like void width (pinhole size) and interface recombination velocity. The elegant result is that $V_{OC}$, governed by the quasi-Fermi level splitting, remains stable if the interfacial recombination is managed, regardless of whether the void is one large pinhole or many small ones of the same total area. $J_{SC}$, being an integrated current, is directly eroded by the lost absorption area, making it sensitive to the spatial distribution of those voids.

4. Strengths & Flaws

Strengths:

• Paradigm-Shifting Conclusion: Challenges the prevailing "pinhole-free at all costs" dogma, offering a more nuanced view of defect tolerance.
• Strong Methodology: Combines numerical simulation with supporting analytical models, providing both depth and conceptual clarity.
• Practical Utility: The proposed I-V based diagnostic for surface coverage is a potentially valuable, low-cost tool for process monitoring in R&D and manufacturing.
• Forward-Looking: It opens the door for "interface engineering" as a complementary or even alternative strategy to perfect morphology control.

Flaws & Limitations:

• Oversimplified Geometry: The 1D/2D unit cell model with regular voids is a stark simplification compared to the complex, irregular pinhole networks observed in real spin-coated films (akin to the difference between a controlled CycleGAN-style image translation and real-world noisy data).
• Material Agnosticism: The model uses generic semiconductor parameters. It doesn't capture specific chemistry-dependent degradation pathways that pinholes might exacerbate, such as moisture ingress or ion migration, which are critical for perovskite stability.
• Lack of Experimental Validation: The study is purely computational. While the arguments are sound, correlation with a controlled experimental dataset featuring quantified pinhole distributions is needed for full conviction.

5. Actionable Insights

For researchers and engineers, this paper suggests a strategic pivot:

1. Re-prioritize Characterization: Don't just count pinholes from SEM images; quantify the effective electronic surface coverage using the proposed I-V method or similar electrical diagnostics.
2. Dual-Track Optimization: Work on two fronts in parallel: (a) Improve morphology to boost $J_{SC}$, and (b) Engineer ultra-low recombination contacts (ETL/HTL) to protect $V_{OC}$ and provide a buffer against inevitable morphological imperfections. Look to champion materials used in record-efficiency cells from institutions like Oxford PV or KAUST.
3. Rethink Process Windows: A deposition process that yields slightly lower surface coverage but with excellent interfacial properties might be more manufacturable and yield higher average performance than a brittle process aiming for perfect, 100% coverage.
4. New Figure of Merit: For interface layers, prioritize "recombination velocity at the exposed ETL/HTL contact" as a key metric alongside traditional ones like conductivity.

6. Technical Details & Mathematical Formulation

The core analysis hinges on solving the carrier continuity and Poisson equations within the defined unit cell geometry. The photogeneration rate $G(x)$ is calculated using optical transfer-matrix methods, considering interference effects. The key analytical insight relates $V_{OC}$ to the surface coverage $s$ and the recombination current at the interface $J_{rec,int}$:

$V_{OC} \approx \frac{n k T}{q} \ln\left(\frac{J_{ph}}{J_{0, bulk} + (1-s) J_{0, int}}\right)$

where $J_{ph}$ is the photocurrent, $J_{0, bulk}$ is the saturation current density of the perovskite bulk, and $J_{0, int}$ is the saturation current density of the direct ETL/HTL interface within the void. This equation clearly shows that $V_{OC}$ degradation is tied to the term $(1-s)J_{0,int}$. If $J_{0,int}$ can be made sufficiently small through interface engineering, the impact of low coverage $(1-s)$ is mitigated.

The short-circuit current is approximated by integrating the photogenerated current that is not lost in the void region or to recombination:

$J_{SC} \approx s \cdot J_{ph, ideal} - q (1-s) \int U_{int} dx$

where $U_{int}$ is the recombination rate at the interface, showing direct dependence on both $s$ and the recombination activity.

7. Experimental Results & Chart Description

Simulated Results Summary: The numerical simulations yield two primary sets of results visualized in key charts.

Chart 1: $J_{SC}$ and $V_{OC}$ vs. Pinhole Size (for fixed coverage). This chart would show $J_{SC}$ decreasing as the characteristic pinhole size increases, even for constant total void area, due to increased perimeter-to-area ratio and associated recombination. In contrast, the $V_{OC}$ curve would remain relatively flat, demonstrating its insensitivity to size distribution.

Chart 2: Efficiency vs. Surface Coverage for different Interface Recombination Velocities (SRV). This is the most telling chart. It would show multiple curves: For high SRV (poor interface), efficiency plummets rapidly as coverage decreases. For low SRV (excellent interface), the efficiency curve remains high and flat, showing that even devices with 80-90% coverage can retain >90% of the ideal cell's efficiency. This visually encapsulates the paper's main argument for interface engineering.

8. Analysis Framework: Example Case

Scenario: A research group fabricates PSCs with a new precursor ink. SEM analysis shows a surface coverage of ~92%, but the pinholes appear larger than in their standard recipe. Traditional Analysis: Conclude the new ink is inferior due to larger pinholes, focus on fixing morphology. Framework-Based Analysis (from this paper):

1. Measure Electrical Output: Extract $V_{OC}$ and $J_{SC}$ from the I-V curve.
2. Diagnose: If $V_{OC}$ remains high (close to the baseline with 98% coverage), it indicates the ETL/HTL interface has low recombination velocity ($J_{0,int}$ is small). The primary loss is in $J_{SC}$.
3. Root Cause & Action: The problem is predominantly optical (lost absorption area). The solution path is to improve film formation to increase coverage, not necessarily to change the interface materials. The large pinhole size is less of a concern for voltage.
4. Quantify: Use the analytical model to back-calculate an effective $J_{0,int}$, confirming it's low. This validates the interface quality.

9. Application Outlook & Future Directions

The insights from this work have direct implications for the scalable manufacturing of PSCs.

• Manufacturing Tolerance: By defining an "electrically acceptable" surface coverage window (e.g., >90%) rather than a perfectionist goal, deposition techniques like slot-die coating or blade coating become more viable, as they often produce films with higher roughness but acceptable coverage.
• Stable Interface Design: Future research should focus on developing "universal" passivating contact layers that simultaneously provide excellent charge selectivity and extremely low recombination at any exposed interface. Materials like self-assembled monolayers (SAMs) or wide-bandgap oxides are promising candidates.
• Integrated Diagnostics: The proposed I-V analysis could be integrated into inline quality control systems in a pilot production line to monitor coating uniformity in real-time.
• Extension to Tandems: This principle is critical for perovskite-silicon tandems. The perovskite top cell, often deposited on textured silicon, will inherently have imperfect coverage. Engineering a nearly recombination-free interface between the perovskite charge transport layer and the silicon bottom cell (or intermediate layer) is paramount to maintain high $V_{OC}$ in the tandem stack.
