Tri-Level Optimization Model for Hybrid Renewable Energy Systems: A Comprehensive Analysis

1. Introduction

The integration of diverse renewable energy sources into a cohesive and efficient system presents a significant real-world challenge. Hybrid Renewable Energy Systems (HRES), which combine sources like solar photovoltaic (PV) with energy storage systems (ESS), are crucial for a stable and sustainable energy supply. However, optimizing such systems requires balancing multiple, often conflicting, objectives simultaneously. This paper introduces a tri-level mathematical model specifically designed for HRES. The core purpose is to provide a structured framework that can concurrently address three critical decision-making levels: maximizing solar PV efficiency, enhancing ESS performance, and minimizing greenhouse gas (GHG) emissions. This approach moves beyond single-objective optimization to capture the complex interdependencies within modern energy grids.

2. Tri-Level Model Framework

The proposed model structures the HRES optimization problem into three hierarchical levels, each with distinct objectives and constraints that feed into the next.

3. Technical Details & Mathematical Formulation

The tri-level model can be formulated as a nested optimization problem. Let $x_1$ be the decision variables for the solar PV system (e.g., capacity, orientation), $x_2$ for the ESS (e.g., capacity, dispatch schedule), and $x_3$ represent system-level parameters affecting emissions.

Level 3 (Upper Level - Emissions Minimization):

$\min_{x_3} \, F_{GHG}(x_1^*, x_2^*, x_3)$

subject to system-wide constraints (e.g., total cost budget, land use).

Where $x_1^*$ and $x_2^*$ are the optimal solutions from the lower levels.

Level 2 (Middle Level - ESS Optimization):

$\max_{x_2} \, F_{ESS}(x_1^*, x_2)$

subject to storage dynamics: $SOC_{t+1} = SOC_t + \eta_{ch} \cdot P_{ch,t} - \frac{P_{dis,t}}{\eta_{dis}}$, where $SOC$ is state of charge, $\eta$ is efficiency, and $P$ is power.

Level 1 (Lower Level - PV Optimization):

$\max_{x_1} \, F_{PV}(x_1) = \sum_{t} P_{PV,t}(x_1, G_t, T_t)$

where $P_{PV,t}$ is power output at time $t$, a function of solar irradiance $G_t$ and temperature $T_t$.

4. Experimental Results & Chart Description

While the provided PDF excerpt does not contain specific numerical results, a typical experimental validation of such a model would involve simulations comparing the tri-level optimized HRES against a conventional single-level or two-level optimization baseline.

Hypothetical Chart Description: A key result would likely be presented as a multi-line chart. The x-axis would represent time (e.g., over 24 hours or a year). Multiple y-axes could show: 1) Solar PV generation (kW), 2) ESS State of Charge (%), 3) Grid power import/export (kW), and 4) Cumulative GHG emissions (kg CO2-eq). The chart would demonstrate how the tri-level model successfully shifts load, charges the battery during peak solar hours, discharges during evening peak demand, and minimizes grid reliance, leading to a significantly lower and smoother emissions profile compared to a non-optimized or singly-optimized system. A bar chart comparing total annual GHG emissions, system cost, and solar energy utilization rate across different optimization approaches would further highlight the tri-level model's superior Pareto efficiency.

5. Analysis Framework: Example Case Study

Scenario: A medium-sized commercial building seeks to reduce its energy costs and carbon footprint.

Framework Application:

1. Data Input: Collect one year of historical hourly load data, local solar irradiance/temperature data, electricity tariff (including time-of-use rates), and carbon intensity of the grid.
2. Level 1 Analysis: Using software like PVsyst or SAM, model different PV system sizes and configurations. Determine the optimal setup that maximizes annual yield given roof space constraints.
3. Level 2 Analysis: Feed the optimal PV generation profile into an ESS model (e.g., using Python with libraries like Pyomo). Optimize battery size and a 24-hour dispatch schedule to maximize arbitrage (buy low, sell high) and self-consumption, subject to battery cycle life constraints.
4. Level 3 Analysis: Calculate the lifecycle GHG emissions for the proposed PV+ESS system (using databases like Ecoinvent). Compare against the business-as-usual scenario (grid-only) and a simple PV-only scenario. The tri-level model will identify the configuration where adding storage provides the greatest emissions reduction per dollar invested, which might not be the same as the configuration that maximizes purely financial return.

6. Core Insight & Analyst's Perspective

Core Insight: The paper's fundamental value proposition isn't just another optimization algorithm; it's a structural innovation. It formally decouples the traditionally entangled objectives of HRES design into a hierarchical decision cascade. This mirrors real-world engineering and investment decision-making processes (technology selection -> operational tuning -> policy compliance), making the model more interpretable and actionable for stakeholders than a black-box multi-objective optimizer.

Logical Flow: The logic is sound and pragmatic. You can't optimize storage if you don't know your generation profile, and you can't claim environmental benefits without modeling the full system interaction. The tri-level structure enforces this causality. However, the paper's excerpt heavily leans on citing a vast bibliography ([1]-[108]) to establish context, which, while demonstrating scholarly diligence, risks overshadowing the novel core of the work. The real test is in the specific formulation of the constraints and the coupling variables between levels, details not provided in the abstract.

Strengths & Flaws:
Strengths: The framework is highly adaptable. The objectives at each level can be swapped (e.g., Level 1 could minimize LCOE instead of maximizing efficiency) based on project priorities. It naturally accommodates different stakeholder perspectives (technology provider, system operator, regulator).
Critical Flaw: The elephant in the room is computational tractability. Nested optimization problems are notoriously difficult to solve, often requiring iterative algorithms or reformulations into single-level problems using techniques like Karush–Kuhn–Tucker (KKT) conditions, which can be complex and approximate. The paper's success hinges on its proposed solution method, which is not detailed here. Without an efficient solver, the model remains a theoretical construct. Furthermore, the model assumes perfect forecasting of solar resource and load, a significant simplification compared to the stochastic reality captured by more advanced frameworks like those using Markov Decision Processes, as seen in cutting-edge reinforcement learning applications for energy management.

Actionable Insights: For practitioners, this paper is a compelling blueprint for system design. Action 1: Use this tri-level thinking as a checklist for your HRES project requirements. Explicitly define your Level 1, 2, and 3 goals before running any software. Action 2: When evaluating vendor proposals, ask which level of optimization their offering addresses. Many focus only on Level 1 (PV yield) or Level 2 (battery arbitrage), ignoring the integrated Level 3 (emissions) impact. Action 3: For researchers, the gap to fill is developing robust, fast heuristics or meta-heuristics (like the NSGA-II algorithm commonly used in multi-objective optimization) specifically tailored to solve this tri-level structure efficiently under uncertainty, bridging the gap between elegant formulation and practical implementation.

7. Application Outlook & Future Directions

The tri-level model has significant potential beyond the standalone microgrid application presented.

• Grid-Scale Integration: The framework can be scaled to optimize portfolios of renewable assets and grid-scale storage (e.g., flow batteries, pumped hydro) for transmission system operators, directly contributing to grid stability and decarbonization goals.
• Green Hydrogen Production: Level 1 could optimize a hybrid wind-solar farm, Level 2 could manage a dedicated storage buffer, and Level 3 could minimize the carbon intensity of hydrogen produced by electrolyzers, a critical challenge for the green hydrogen economy.
• Electric Vehicle (EV) Charging Hubs: Integrate EV charging demand as a dynamic load. Level 1 optimizes on-site renewables, Level 2 manages stationary storage and vehicle-to-grid (V2G) capabilities from connected EVs, and Level 3 minimizes the overall carbon footprint of mobility.
• Future Research Directions: The most urgent direction is incorporating uncertainty (stochastic optimization) for solar generation, load, and energy prices. Secondly, integrating machine learning for forecasting and surrogate modeling could drastically reduce computational time. Finally, expanding to a quad-level model that includes a fourth level for long-term asset degradation and replacement scheduling would enhance lifecycle analysis.

8. References

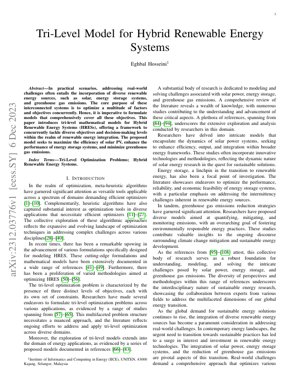

1. Hosseini, E. (Year). Tri-Level Model for Hybrid Renewable Energy Systems. Journal Name, Volume(Issue), pages. (Source PDF)
2. Deb, K., Pratap, A., Agarwal, S., & Meyarivan, T. (2002). A fast and elitist multiobjective genetic algorithm: NSGA-II. IEEE Transactions on Evolutionary Computation, 6(2), 182-197.
3. International Energy Agency (IEA). (2023). Renewables 2023. Retrieved from https://www.iea.org/reports/renewables-2023
4. National Renewable Energy Laboratory (NREL). (2023). System Advisor Model (SAM). https://sam.nrel.gov/
5. Zhu, J., et al. (2017). A multi-objective optimization model for renewable energy generation and storage scheduling. Applied Energy, 200, 45-56.
6. F. R. de Almeida, et al. (2022). Stochastic Optimization for Hybrid Renewable Energy Systems: A Review. Renewable and Sustainable Energy Reviews, 168, 112842.
7. W. G. J. H. M. van Sark, et al. (2020). Photovoltaic Solar Energy: From Fundamentals to Applications. Wiley.
