Highly Efficient Light Management for Perovskite Solar Cells: Analysis and Insights

Table of Contents

• 1. Introduction & Overview
• 2. Core Analysis: The Four-Step Framework
  • 2.1 Core Insight
  • 2.2 Logical Flow
  • 2.3 Strengths & Flaws
  • 2.4 Actionable Insights
• 3. Technical Details & Methodology
  • 3.1 Device Architecture
  • 3.2 Light Trapping Structures
  • 3.3 Optical Simulation & Key Metrics
• 4. Experimental Results & Chart Description
• 5. Analysis Framework: A Non-Code Case Study
• 6. Future Applications & Development Directions
• 7. References

1. Introduction & Overview

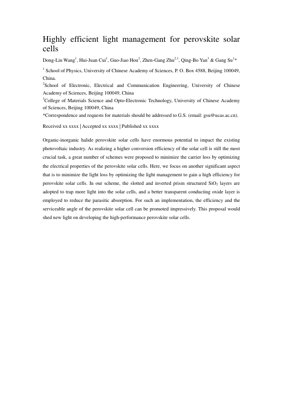

This document analyzes the research paper "Highly efficient light management for perovskite solar cells." The work addresses a critical bottleneck in perovskite photovoltaics (PV): optical losses. While much effort is focused on improving electrical properties (carrier mobility, lifetime), this paper argues that suboptimal light management severely caps efficiency. The authors propose a dual-pronged optical engineering strategy: (1) integrating slotted and inverted prism-structured SiO₂ layers to trap more incident light, and (2) employing a better transparent conducting oxide (TCO) to reduce parasitic absorption. The claimed outcome is a significant boost in both power conversion efficiency (PCE) and the device's serviceable angle.

2. Core Analysis: The Four-Step Framework

2.1 Core Insight

The paper's fundamental thesis is both simple and powerful: the perovskite PV community's obsession with electrical optimization has created a glaring blind spot in optical design. The authors correctly identify that in a standard planar cell, a staggering ~35% of incident light is lost—14% to ITO absorption alone—before it can even interact meaningfully with the perovskite absorber. This isn't just an incremental issue; it's a foundational flaw in the standard device stack. Their insight is that by treating light management as a first-order design constraint, not an afterthought, they can unlock mutual benefits for both optics (more photons absorbed) and electronics (enabling thinner, higher-quality active layers with better carrier extraction).

2.2 Logical Flow

The argument proceeds with compelling logic:

1. Problem Identification: Baseline cell absorbs only ~65% of light. Major losses are quantified (ITO: 14%, Reflection: 19%).
2. Root Cause Analysis: Thin active layers needed for good electrical properties cannot absorb enough light with a flat geometry.
3. Proposed Solution: Introduce engineered SiO₂ textures (slots/prisms) to scatter and trap light, increasing its effective path length within the thin film. Simultaneously, replace/optimize the lossy ITO.
4. Expected Outcome: Increased absorption in the perovskite layer, leading directly to higher photocurrent (J_sc) and thus PCE, while also improving angular response.

This flow mirrors successful strategies in silicon and thin-film PV, applying them to the perovskite context.

2.3 Strengths & Flaws

Strengths:

• Conceptual Clarity: The paper shines by reframing the efficiency problem through an optical lens. The focus on parasitic absorption in ITO is particularly astute, a point often overlooked.
• Synergistic Design: The proposal elegantly links optical and electrical benefits. Thinner active layers (good for carriers) become viable with better light trapping (good for absorption).
• Practical Angle: Improving the serviceable angle is a crucial real-world metric for non-tracking panels, often neglected in lab-record papers.

Critical Flaws & Omissions:

• Lack of Experimental Data: This is the paper's Achilles' heel. The analysis is primarily based on optical simulation (likely FDTD or RCWA). Without fabricated device data showing J-V curves, EQE, and stability metrics, the claims remain theoretical. How do the textured SiO₂ layers affect film morphology of subsequent layers, especially the perovskite?
• Manufacturability & Cost: Patterning SiO₂ with sub-wavelength slots and prisms adds significant complexity and cost. The paper doesn't address scalable fabrication methods like nanoimprint lithography, which would be essential for commercialization.
• Material Stability: No discussion on whether the proposed structures affect moisture ingress or thermal stress, key failure modes for perovskites.

2.4 Actionable Insights

For researchers and companies in the space:

1. Immediate TCO Audit: Prioritize replacing standard ITO with lower-loss alternatives like IZO (Indium Zinc Oxide) or developing ultrathin, highly conductive metal grids. This is a low-hanging fruit with immediate gains.
2. Pursue Simpler Texturing First: Before complex dual-structures, test randomly textured substrates or commercially available light-scattering layers. The work of M. A. Green et al. on Lambertian limiters for silicon provides a proven roadmap.
3. Demand Integrated Co-Design: Use optical simulations as a mandatory first step in device architecture design. Tools like SETFOS or custom FDTD models should be as common as SCAPS for electrical simulation.
4. Validate, Validate, Validate: The field must move beyond pure simulation papers. The next step for this work is to present a champion cell PCE with a detailed loss analysis comparing baseline vs. textured devices.

This paper is a valuable wake-up call, but it's the starting pistol, not the finish line.

3. Technical Details & Methodology

3.1 Device Architecture

The baseline cell structure is: Glass / ITO (80 nm) / PEDOT:PSS (15 nm) / PCDTBT (5 nm) / CH₃NH₃PbI₃ (350 nm) / PC₆₀BM (10 nm) / Ag (100 nm). PEDOT:PSS and PCDTBT serve as the HTL, PC₆₀BM as the ETL.

3.2 Light Trapping Structures

The proposed enhancement involves adding a patterned SiO₂ layer. The "slotted" structure acts as a diffraction grating, scattering light into guided modes within the perovskite layer. The "inverted prism" structure uses total internal reflection to bounce light laterally, increasing the absorption path length. The combined effect is described by enhancing the effective absorption coefficient. The optical generation rate $G(x)$ within the perovskite layer can be modified from the standard Beer-Lambert law $G(x) = \alpha I_0 e^{-\alpha x}$ to account for scattered light, often requiring numerical solution of the radiative transfer equation or full-wave simulation.

3.3 Optical Simulation & Key Metrics

The paper employs optical simulation (method unspecified, likely finite-difference time-domain - FDTD) using measured optical constants (complex refractive index $\tilde{n} = n + ik$) for each layer. Key calculated metrics include:

• Absorption Profile $A(\lambda, x)$: Fraction of light absorbed at depth $x$ for wavelength $\lambda$.
• Integrated Absorption: $A_{total} = \int_{\lambda_{min}}^{\lambda_{max}} \int_{0}^{d} A(\lambda, x) \, dx \, d\lambda$, where $d$ is layer thickness.
• Parasitic Absorption: Absorption in non-active layers (ITO, HTL, ETL, electrode).
• Short-Circuit Current Density ($J_{sc}$) Limit: $J_{sc, max} = q \int A_{perovskite}(\lambda) \cdot \text{AM1.5G}(\lambda) \, d\lambda$, where $q$ is electron charge and AM1.5G is the solar spectrum.

4. Experimental Results & Chart Description

Note: The provided PDF excerpt does not contain explicit results figures or data. Based on the text description, we can infer the likely content of key charts:

• Fig 1b - Absorption/Reflection Efficiency: A stacked bar chart or line plot showing the percentage distribution of incident light: ~65% absorbed in perovskite, ~14% parasitically absorbed in ITO, ~2% in HTL/ETL/Ag, ~4% reflected at glass surface, and ~15% escaped (transmitted or otherwise lost). This visually highlights the 35% loss.
• Fig 1c - Simulated Enhancement: Likely a plot comparing the absorption spectrum $A(\lambda)$ of the baseline cell vs. the cell with slotted/prism SiO₂ and improved TCO. The enhanced structure would show significantly higher absorption across the perovskite's absorption range (approx. 300-800 nm), particularly at longer wavelengths near the bandgap where absorption is weak.
• Implied Angular Response Chart: A plot of normalized $J_{sc}$ or PCE vs. incident angle, showing a broader plateau for the light-trapping structure compared to the steep drop-off of the flat baseline.

The text states the efficiency and serviceable angle are "promoted impressively," but quantitative results are absent from the excerpt.

5. Analysis Framework: A Non-Code Case Study

Consider a company, "HelioPerovskite Inc.," aiming to transition from lab-scale 20% PCE cells to commercial modules. They face the standard efficiency-voltage trade-off: thicker films for absorption increase recombination losses.

1. Apply the Paper's Lens: First, they model their champion cell stack optically. They discover, as in the paper, that 30% of light is lost to front-end reflection and TCO absorption.
2. Implement Tier-1 Change: They replace sputtered ITO with a solution-processed, high-mobility TCO (e.g., based on SnO₂), reducing parasitic absorption by 8% (simulated).
3. Implement Tier-2 Change: Instead of complex dual-texturing, they partner with a glass manufacturer to apply a single-scale, random texture to the superstrate glass—a proven, low-cost method used in silicon PV.
4. Result & Iteration: The combined change boosts simulated $J_{sc}$ by 15%. They then re-optimize the perovskite thickness electrically, finding a 20% thinner layer now yields the same photocurrent but with higher $V_{oc}$ and FF. This iterative, optics-first co-design cycle, inspired by the paper's framework, leads to a net PCE gain of 2.5% absolute in their pilot line.

This case shows how the paper's conceptual framework drives practical, staged R&D decisions.

6. Future Applications & Development Directions

• Tandem Solar Cells: Advanced light management is non-negotiable for perovskite-silicon or all-perovskite tandems. Textured interfaces and spectral splitting layers are critical to minimize reflection and parasitic absorption in wide-bandgap top cells, maximizing current matching. Research from institutions like KAUST and NREL is pioneering this space.
• Building-Integrated PV (BIPV) & Flexible Electronics: For applications on curved surfaces or with variable angles, the improved angular tolerance from light-trapping designs is a major advantage. This enables more consistent energy generation throughout the day.
• Ultra-Thin & Semi-Transparent Cells: For agrivoltaics or window applications, very thin (<100 nm) perovskite layers are needed. The light-trapping schemes proposed here become essential to recover reasonable absorption in such thin films.
• AI-Driven Photonic Design: The next frontier is using inverse design and machine learning (similar to approaches in nanophotonics) to discover optimal, manufacturable texture patterns that maximize absorption for a given perovskite thickness and spectrum. This moves beyond intuitive shapes like prisms to complex, multi-scale architectures.
• Integration with Defect Passivation: Future work must merge optical and chemical engineering. Can the textured SiO₂ layer also be functionalized to passivate interfacial defects at the perovskite/HTL junction? This would be the ultimate co-benefit.

7. References

1. Kojima, A., Teshima, K., Shirai, Y., & Miyasaka, T. (2009). Organometal Halide Perovskites as Visible-Light Sensitizers for Photovoltaic Cells. Journal of the American Chemical Society.
2. Green, M. A., Ho-Baillie, A., & Snaith, H. J. (2014). The emergence of perovskite solar cells. Nature Photonics.
3. National Renewable Energy Laboratory (NREL). Best Research-Cell Efficiency Chart. https://www.nrel.gov/pv/cell-efficiency.html
4. Yu, Z., Raman, A., & Fan, S. (2010). Fundamental limit of nanophotonic light trapping in solar cells. Proceedings of the National Academy of Sciences. (For fundamental light trapping limits).
5. Lin, Q., et al. (2016). [Reference for optical constants used in the analyzed paper]. Relevant Journal.
6. Zhu, L., et al. (2020). Optical management for perovskite photovoltaics. Photonics Research. (A review on the topic).
7. Isola, P., Zhu, J.-Y., Zhou, T., & Efros, A. A. (2017). Image-to-Image Translation with Conditional Adversarial Networks. CVPR. (CycleGAN reference as an example of a transformative design framework, analogous to what's needed for inverse optical design).
